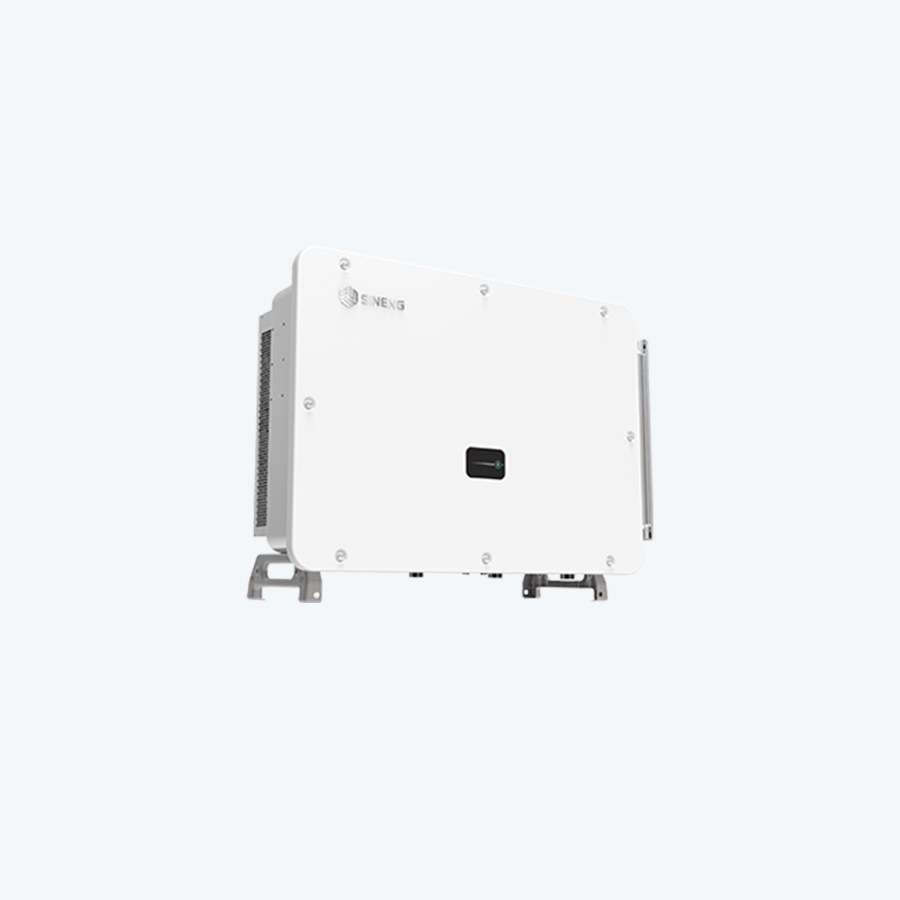

Sineng SN125PT 125kW Three Phase Grid-Tie Inverter
Sinegng – Grid Tie 125Kw inverter is a Sineng high-power commercial PV string inverter for grid-tied solar plants.
Key specifications
- Rated AC power: 125kW
- Inverter family: SN100/110/125PT
- Max PV input voltage: 1100V
- Recommended max PV power: 187.5kWp for SN125PT
- MPPT range: 200V to 1000V
- Full-power MPPT range: 550V to 850V
- PV inputs / MPPTs: 20 inputs, 5 MPPTs
- Max output current: 199.3A
- Max efficiency: 99.0%
- Protection rating: IP66 with C5 anti-corrosion rating
- Dimensions: 1022 x 750 x 362mm
- Weight: 75kg
Warranty and installation notes
- Sineng warranty follows supplied manufacturer/distributor warranty terms.
- Includes DC/AC Type II SPD, AFCI, insulation monitoring and grid protection features on Sineng family data.
- Grid-tie systems must be designed and commissioned by a qualified installer according to local grid, protection and utility requirements.
Apex Electrical and Solar can assist with inverter sizing, compliance planning and installation support.
