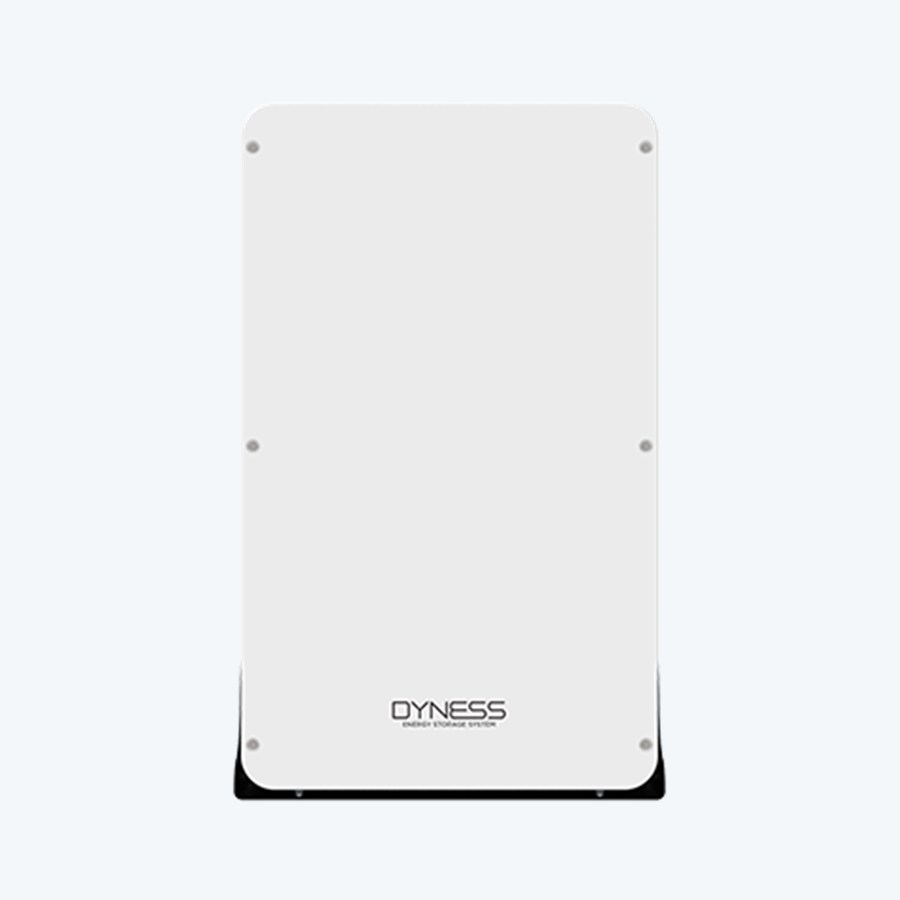

Dyness PowerBox Pro 10.24kWh LiFePO4 Battery
Dyness – Battery Lithium Ion 10,24kWh – PowerBox Pro is a deep-cycle, high-capacity low-voltage LFP battery for home and light commercial backup power.
Key specifications
- Nominal energy: 10.24kWh
- Nominal voltage: 51.2V
- Nominal capacity: 200Ah
- Operating voltage range: 44.8V to 57.6V
- Rated charge/discharge power: 5.12kW
- Maximum charge/discharge power: 10.24kW
- Recommended charge/discharge current: 100A
- Depth of discharge: 90% to 95% depending on datasheet/version
- Communication: CAN/RS485/RS232
- Protection rating: IP65 on PowerBox Pro family data
- Dimensions: 555 x 210 x 928mm / variant dependent
- Net weight: about 103kg / variant dependent
- Expansion: Up to 50 modules in parallel on current family data
Warranty and installation notes
- Manufacturer/distributor listings commonly state a 10-year warranty, subject to official warranty terms and correct use.
- Suitable for wall or floor installation where the supplied mounting method and IP-rating requirements are followed.
- Final inverter compatibility, battery quantity, protection settings and installation layout must be confirmed against the latest manufacturer documentation before installation.
Apex Electrical and Solar can assist with battery sizing, inverter matching and professional installation planning.
