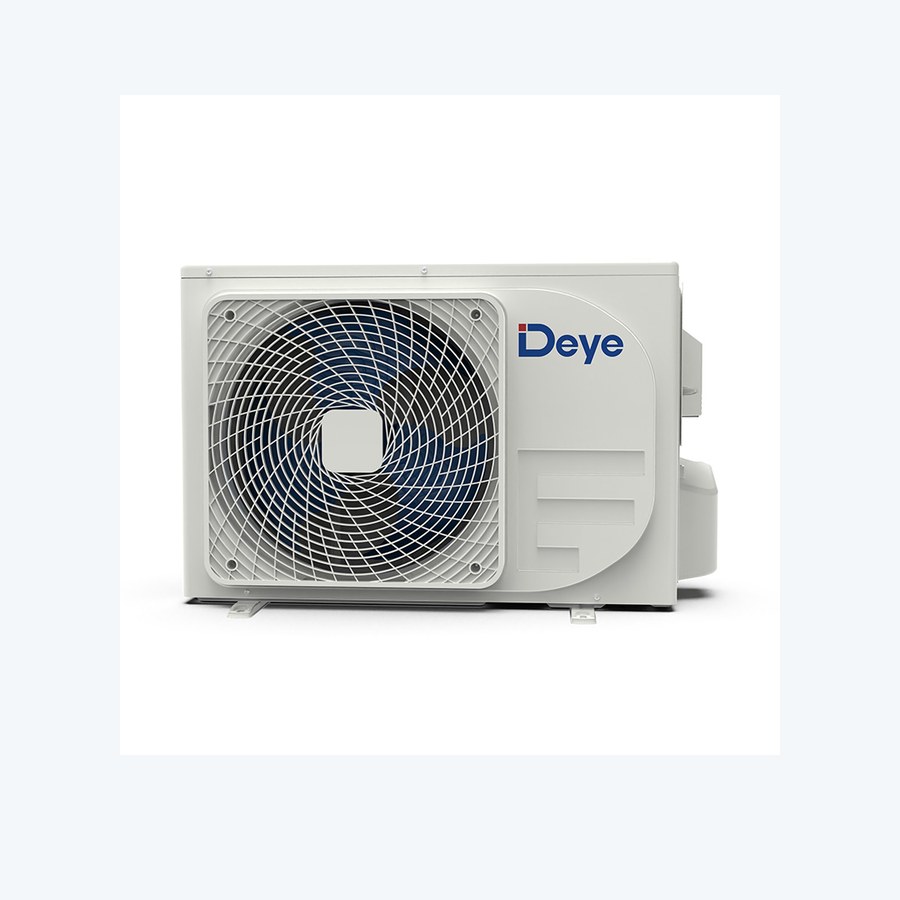

Deye Hybrid ACDC Solar Air Conditioner – 18000BTU

Deye Hybrid AC/DC Solar Air Conditioner 18000BTU

Deye Hybrid ACDC Solar Air Conditioner – 18000BTU is a hybrid AC/DC solar air conditioner designed to run from direct PV solar power during the day and AC grid power when needed.

Key specifications

• Cooling capacity: 17300BTU / 5070W T1 rated
• Heating capacity: 20800BTU / 6100W rated
• Application area: 20-30m2
• Power supply: 1Ph 208-240V AC, 50/60Hz plus direct PV DC
• DC PV input: 80-380V, <=10A
• Recommended solar panels: 3-6 x 330W panels in series
• Solar operation: AC mode, DC mode or AC+DC auto-balance
• External inverter/battery required: No external inverter, battery or charge controller required for daytime PV operation
• Operating ambient: -10C to 58C
• Indoor airflow: Up to 980m3/h
• Indoor noise: <=46dB(A) turbo
• Refrigerant: R410A
• Indoor unit dimensions: 1080 x 330 x 237mm
• Outdoor unit dimensions: 802 x 564 x 323mm

Warranty and installation notes

• Deye warranty follows the supplied Deye warranty document and invoice for the exact air-conditioner model.
• Direct PV operation needs correctly sized panels and compliant DC isolation/protection.
• Air conditioner sizing must consider room size, insulation, sun exposure, ceiling height and installation position.

Apex Electrical and Solar can assist with aircon supply, sizing and professional installation.
