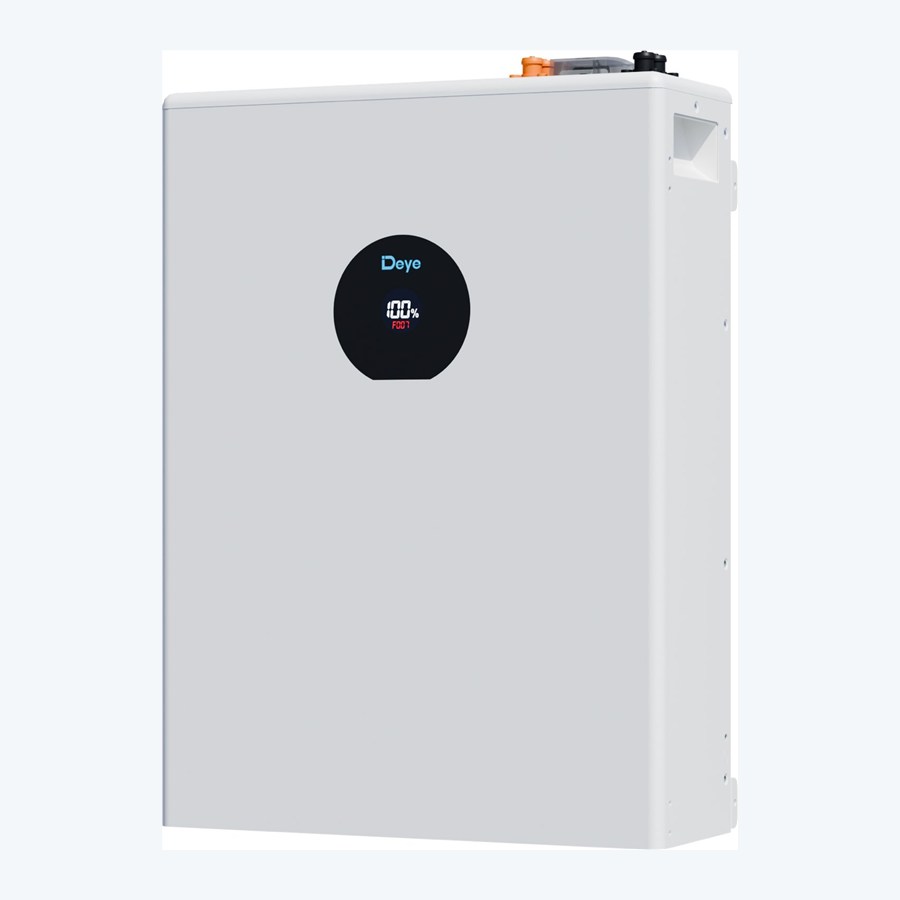

Deye SE-F5 5.12kWh 51.2V 100Ah LiFePO4 Battery
Deye – Battery SE-F 5.12kWh is a compact low-voltage LiFePO4 battery for off-grid and hybrid solar energy storage.
Key specifications
- Nominal energy: 5.12kWh
- Nominal voltage: 51.2V
- Nominal capacity: 100Ah
- Battery chemistry: LiFePO4 / LFP
- Operating voltage range: 44.8V to 57.6V
- Continuous discharge current: 115A
- Peak current: 175A for 10 seconds
- Cycle life: Over 6000 cycles at 80% DoD
- Communication: RS485, CAN and Bluetooth
- Protection rating: IP21
- Dimensions: 370 x 548 x 140mm
- Approximate weight: 41kg
- Scalability: Up to 32 units in parallel on current Deye data
Warranty and installation notes
- Warranty must follow the supplied Deye ESS warranty document and local distributor terms.
- Wall or stack-mounted installation supported according to the Deye installation manual.
- Installation, battery protection, cable sizing and inverter compatibility must be confirmed by a qualified installer before commissioning.
Apex Electrical and Solar can assist with Deye battery selection, inverter matching and installation planning.
