Deye – 10Kw Single Phase Hybrid Inverter – VOC – 800V Battery – 48V CT&WIFI Incl

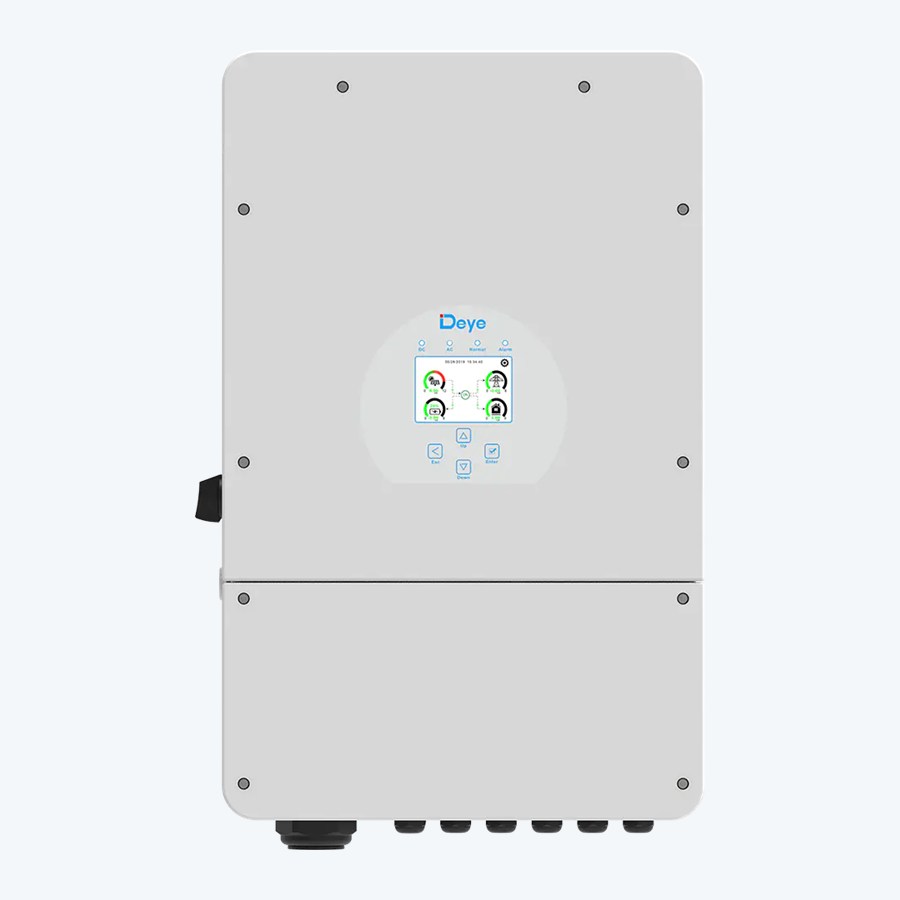

Deye 10kW Single Phase Hybrid Inverter

Deye – 10Kw Single Phase Hybrid Inverter – VOC – 800V Battery – 48V CT&WIFI Incl is a Deye hybrid inverter for solar PV, battery backup and grid/generator integrated power systems.

Key specifications

• Rated output power: 10kW
• Phase type: Single phase
• Battery type: 48V low-voltage
• Maximum PV open-circuit voltage: 800V
• Inverter type: Hybrid solar inverter with PV, battery and grid/generator integration
• Battery charging: Supports lithium battery operation with compatible BMS communication and programmed charge settings
• Monitoring / accessories: CT and WiFi included as listed
• Operating modes: Self-use, backup, time-of-use and grid interaction modes on Deye hybrid family
• Application: Residential, farm, commercial or C&I solar backup depending on inverter size and system design

Warranty and installation notes

• Deye inverter warranty is normally supplied through the distributor/manufacturer warranty document; final term must be confirmed from the supplied unit and invoice.
• For exact MPPT count, string current, surge rating and grid-code configuration, confirm the final Deye model number printed on the inverter label.
• PV string design, battery compatibility, protection, cable sizing and grid-code settings must be confirmed by a qualified installer before commissioning.

Apex Electrical and Solar can assist with inverter selection, battery matching and full solar installation planning.
